Rackmount RJ Panel

What’s MarketSpark provides

1. 25 ft ICC 25-Pair Telco Cable - female
2. ICC Telco 24 Port Patch Panel – male

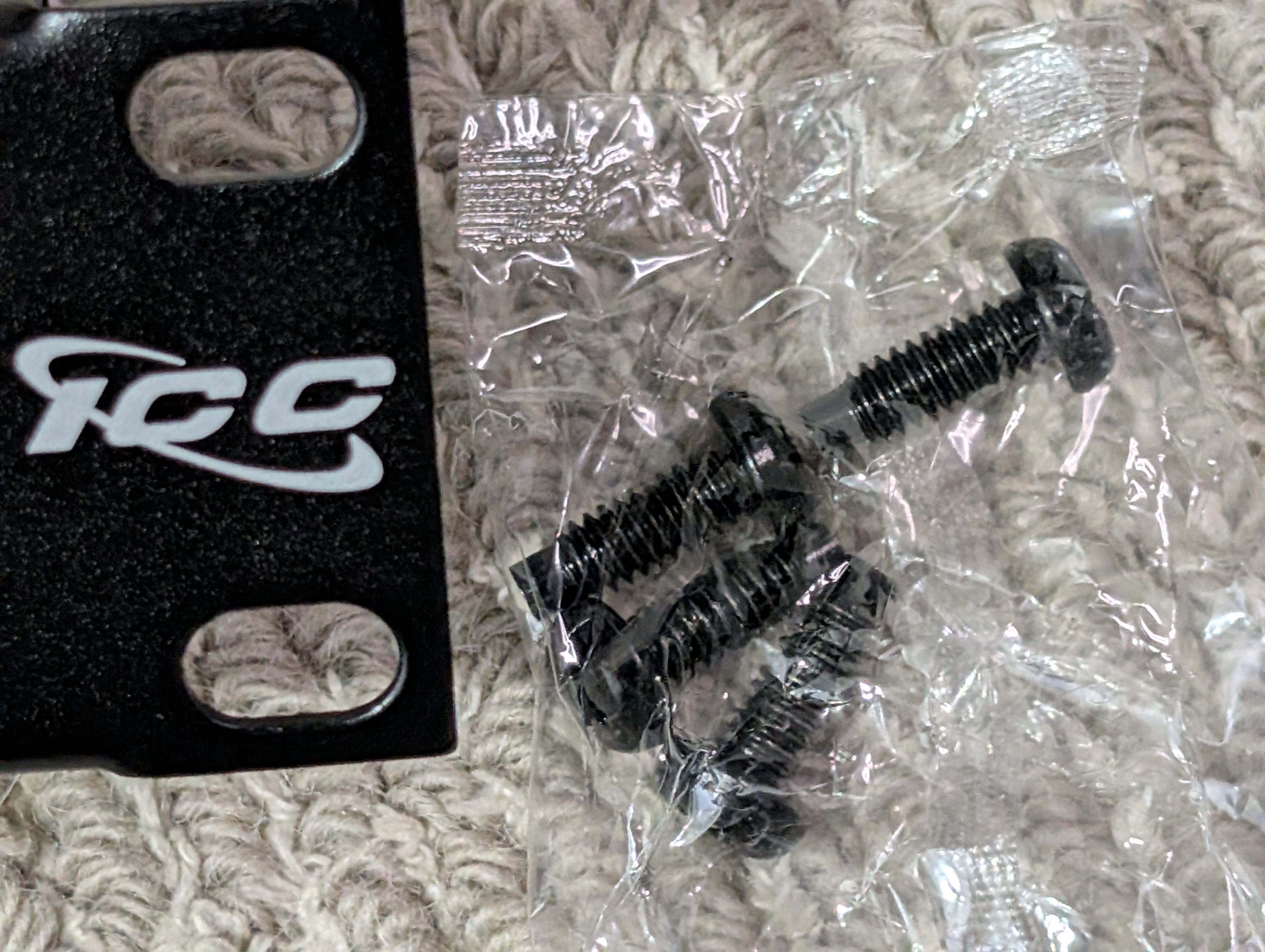

   • 4 screws

Install instructions

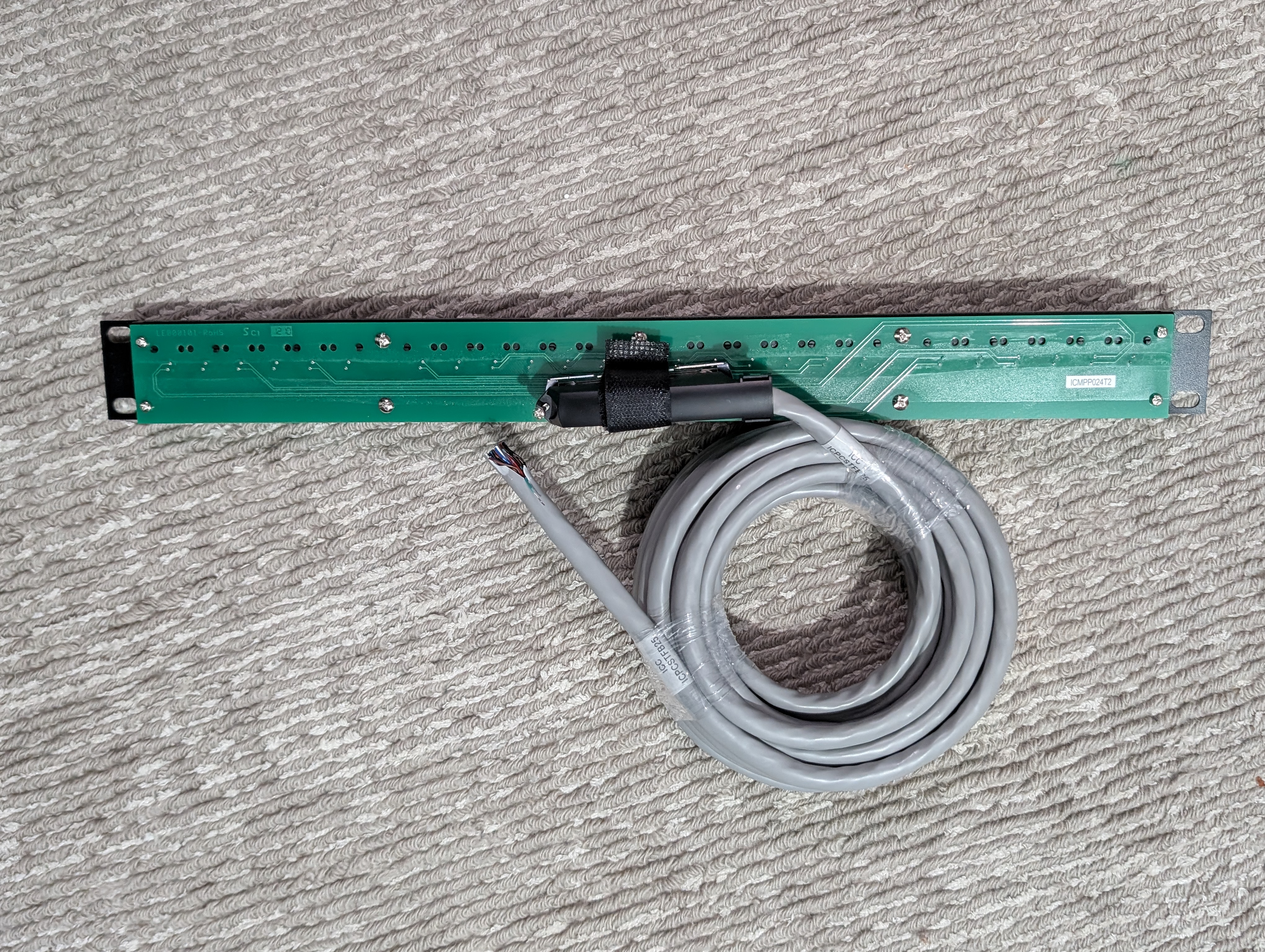

Run 25 ft Telco Cable from MarketSpark unit to client’s rack/cabinet

Ensure that the pin side is at the rack, and blunt end (raw cable side) at the MarketSpark 66 block.

Confirm with on-site contact the desired path of cable

Attach 50-pin female telco connector (RJ21) to male telco connector

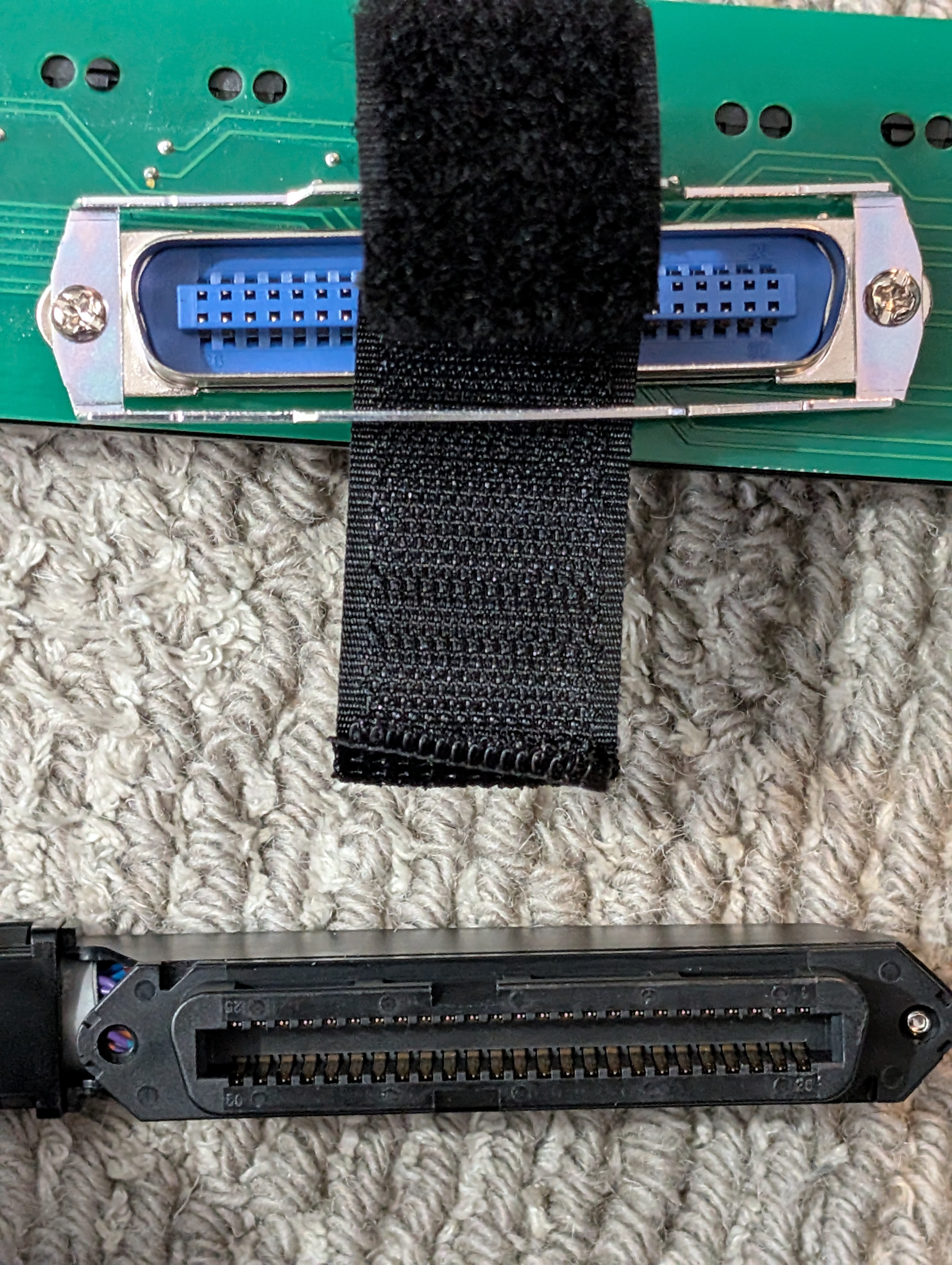

Loosen Velcro wrap without detaching it from metal bracket and remove dust cover from male telco connector. Then insert female connect into Velcro wrap. Plug female connector into male telco connector and tighten Velcro wrap to secure the connectors

Mount ICC Telco 24 Port Patch Panel to client’s onsite rack/cabinet

Confirm patch panel mount location with on-site contact

Attach panel to rack/cabinet with provided (4) screws

Attach 25-pair cable to 66-block

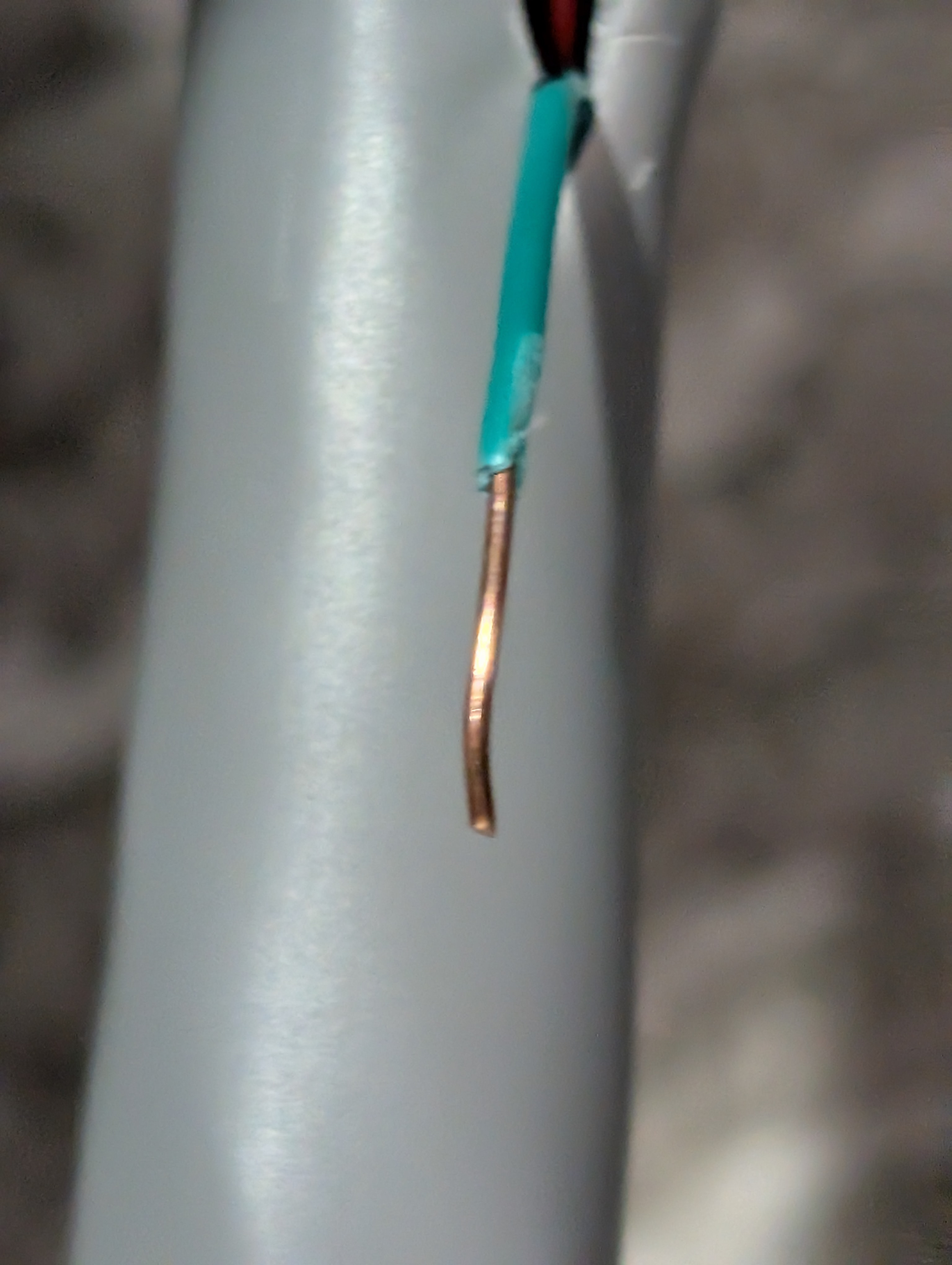

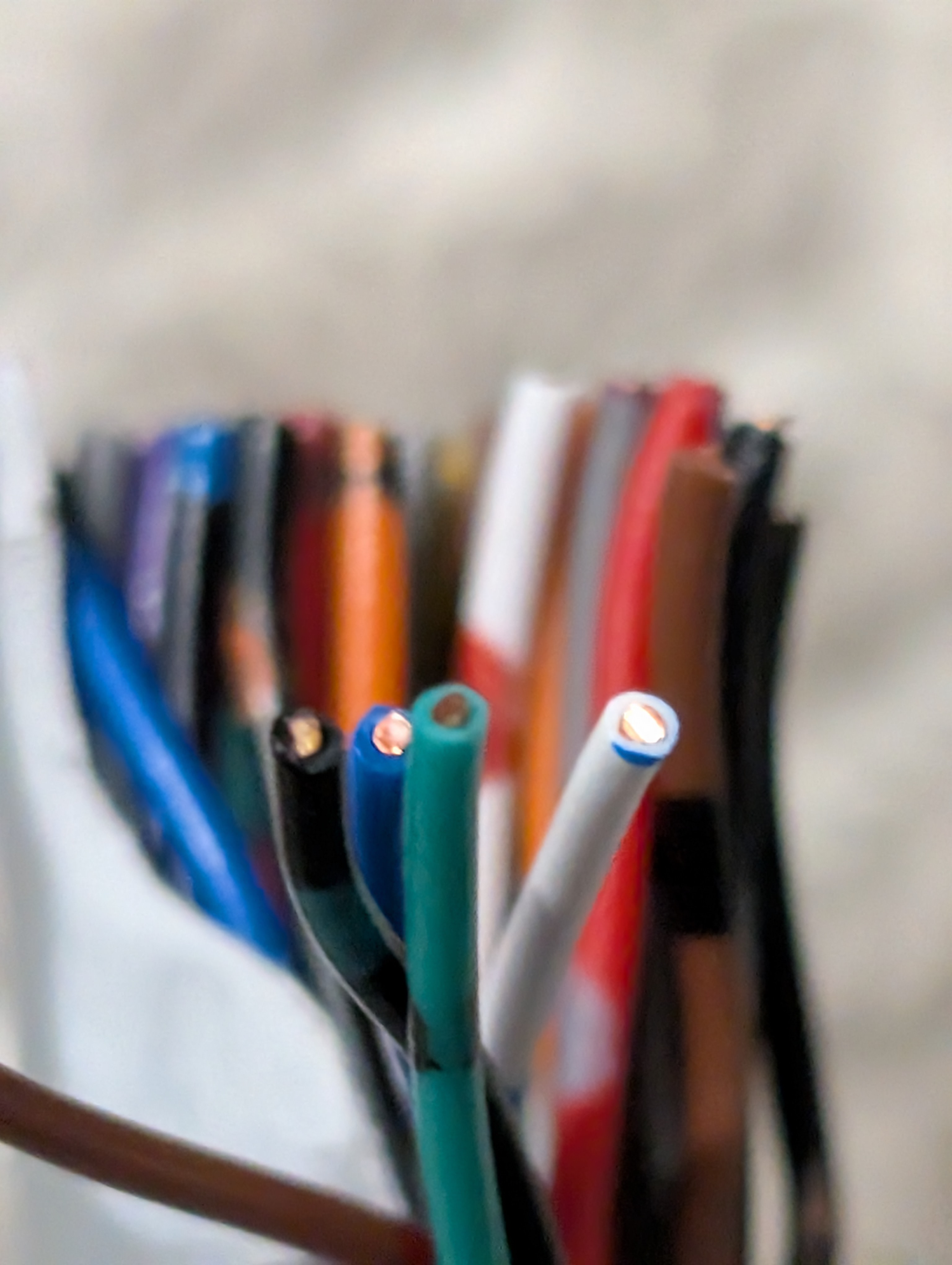

Strip back cable jacket to expose bare copper in prep for punch down

• Do not cut excess wire off!

Once the patch panel has been mounted, proceed with the cutover

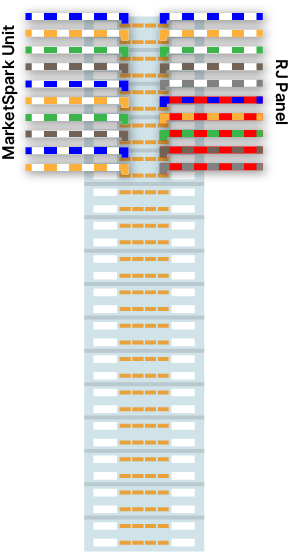

Punch lines to right side of MarketSpark block

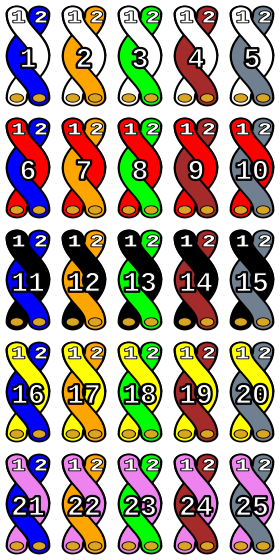

Follow the following color code

Port 1 - White / Blue Port 2 - White / Orange Port 3 - White / Green Port 4 - White / Brown Port 5 - White / Gray Port 6 - Red / Blue Port 7 - Red / Orange Port 8 - Red / Green Port 9 - Red / Brown Port 10 - Red / Gray Port 11 - Black / Blue Port 12 - Black / Orange Port 13 - Black / Green Port 14 - Black / Brown Port 15 - Black / Gray Port 16 - Yellow / Blue Port 17 - Yellow / Orange Port 18 - Yellow / Green Port 19 - Yellow / Brown Port 20 - Yellow / Gray Port 21 - Pink / Blue Port 22 - Pink / Orange Port 23 - Pink / Green Port 24 - Pink / Brown Port 25 - Pink / Gray
